SignedPod

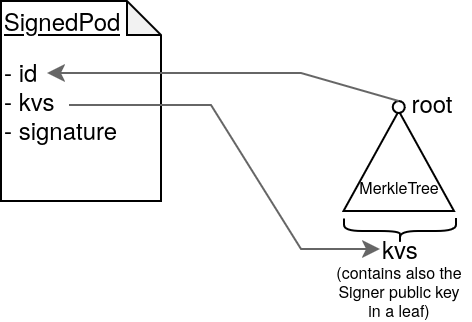

A SignedPod consists of the following fields:

  • mt: key-values storage, internally it's a MerkleTree so that we can generate proofs on the key-values
    • it can only contain ValueOf statements.
    • the Signer's public key is one of the key-values in the kvs.
  • id: the Root of the kvs MerkleTree
  • signature: a signature over the id

Example of SignedPod:

{
    id: "05f7a6de...",
    kvs : {
        _signerKey: "5e1c0b3c...",
        idNumber: "94e328a7...",
        dateOfBirth: 1169909384,
        socialSecurityNum: "1111"
    },
    signature: "68b615f7..."
}
